Description

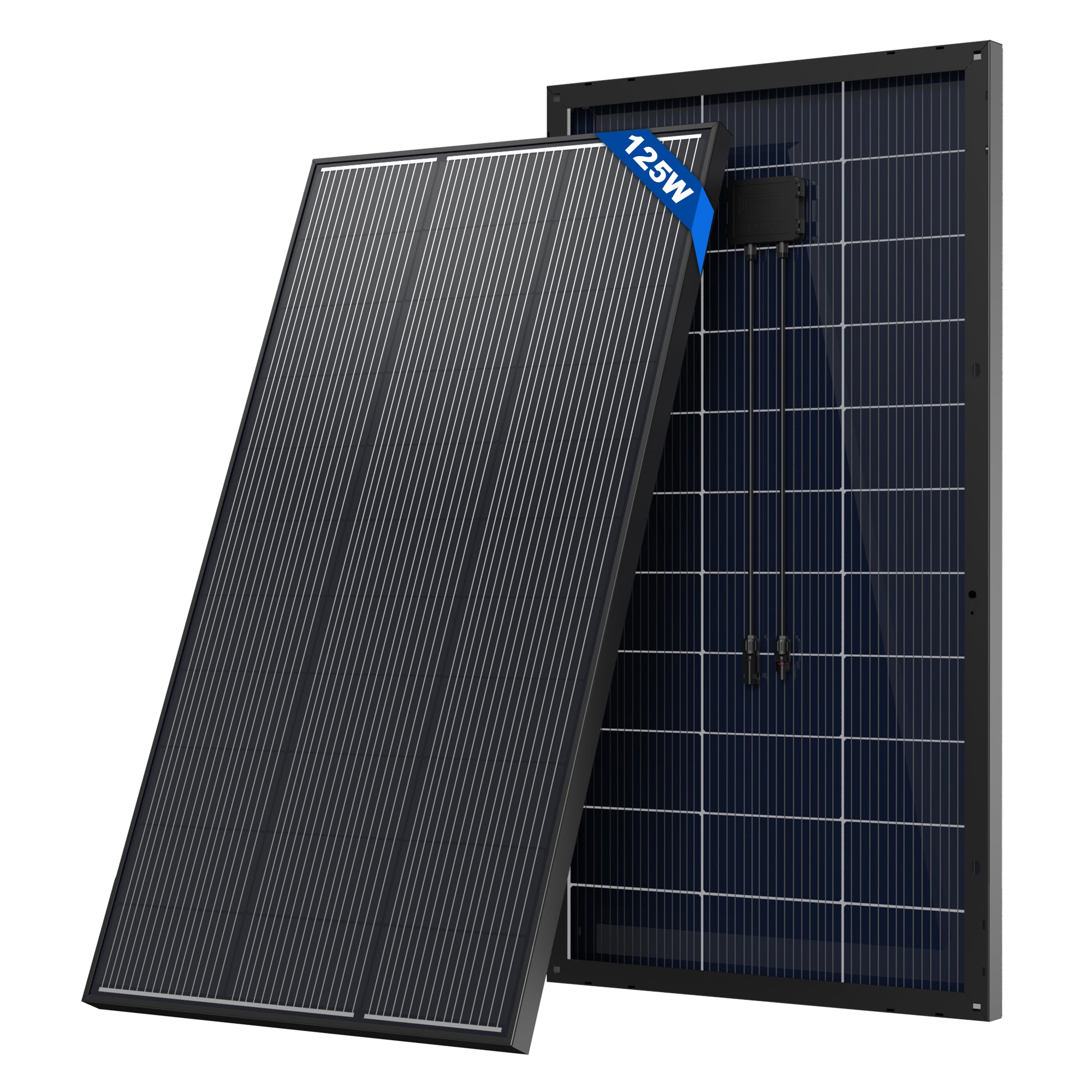

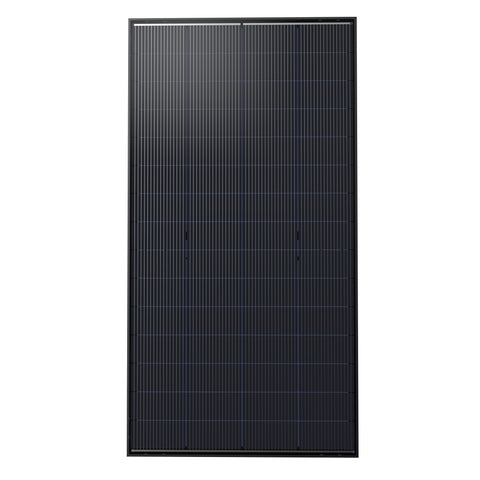

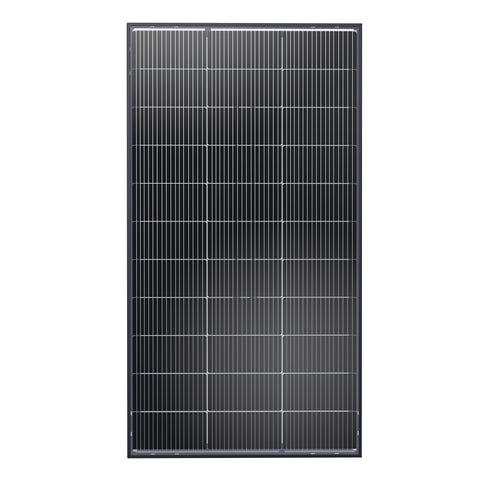

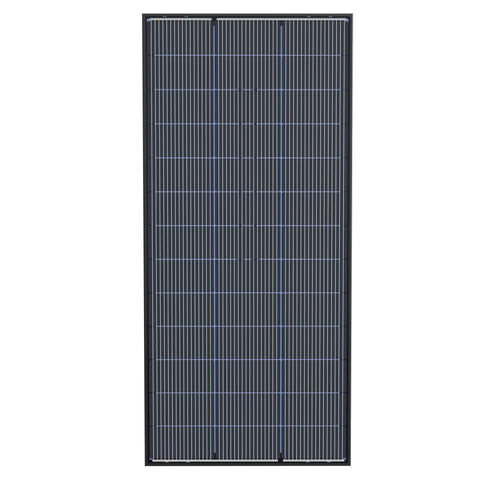

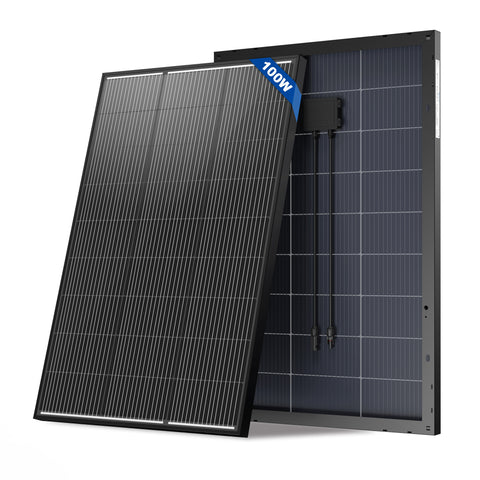

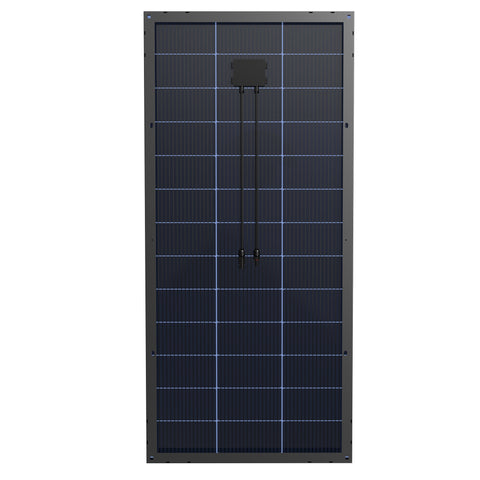

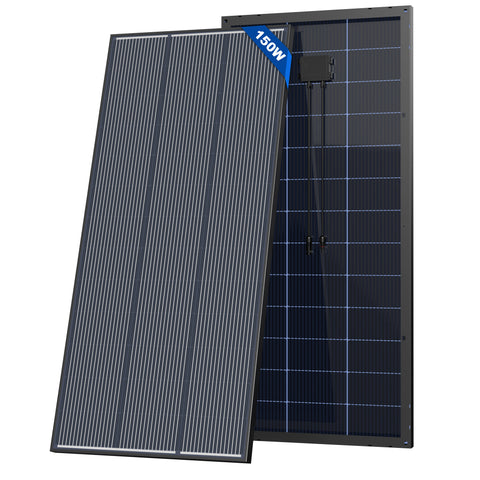

xACOPOWER BBN Series N-Type Bifacial Solar Panel
High-efficiency bifacial solar panels built with N-Type TOPCon monocrystalline cells for RVs, cabins, boats, trucks, and off-grid solar systems.

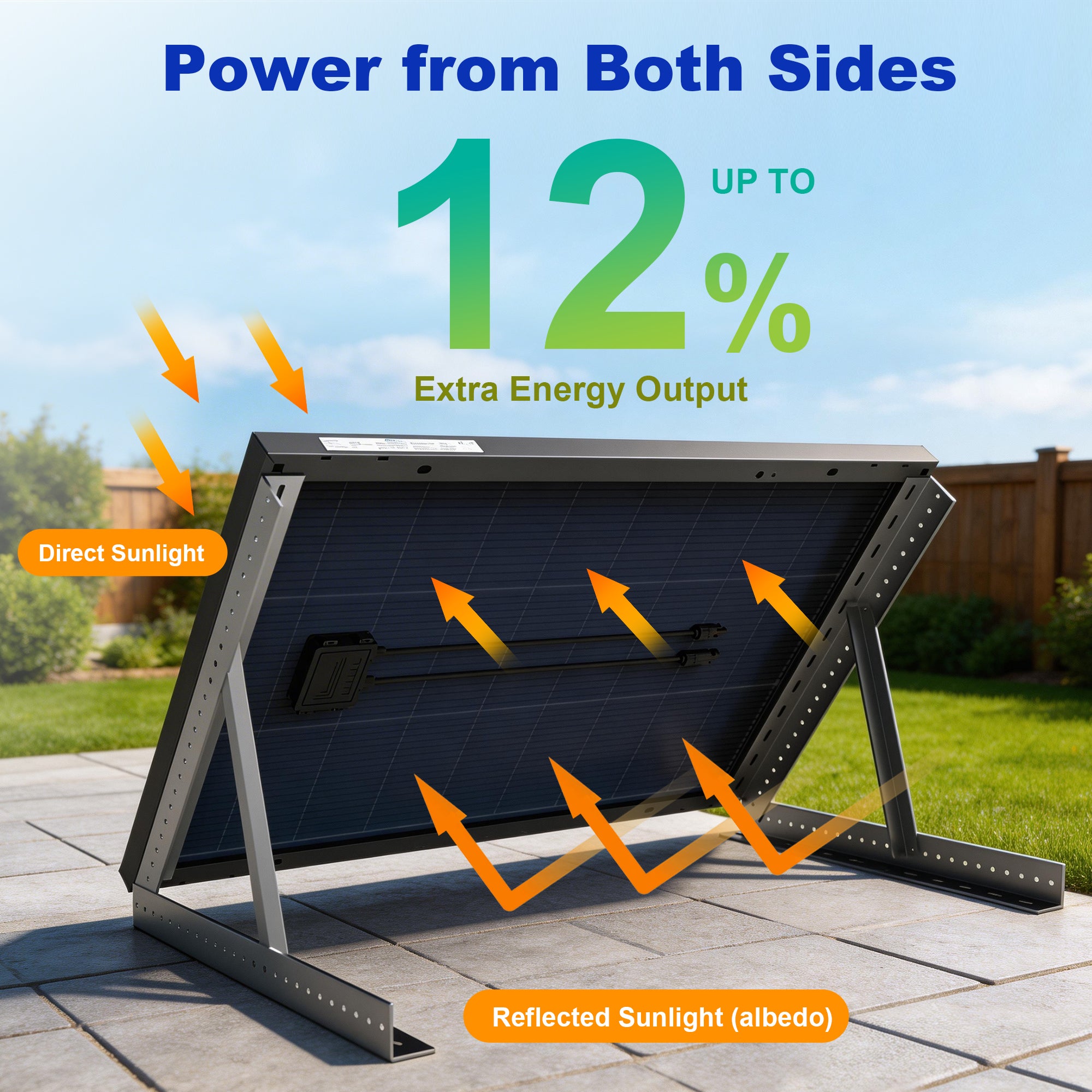

25.4% Max Cell Efficiency N-Type TOPCon Bifacial Design IP67 Junction Box MC4 Connectors 25-Year Output Warranty

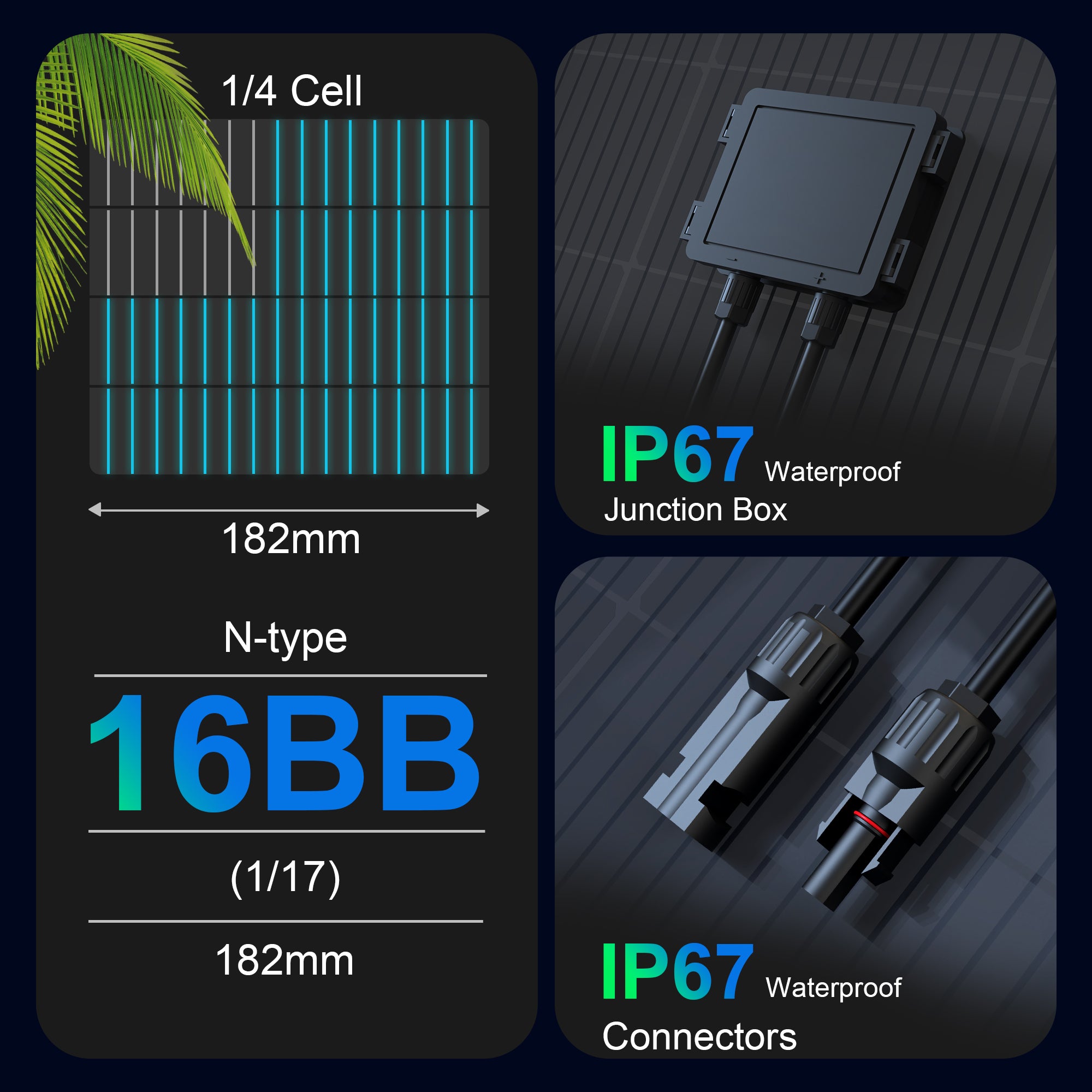

- N-Type TOPCon multi-busbar cell technology for higher conversion performance

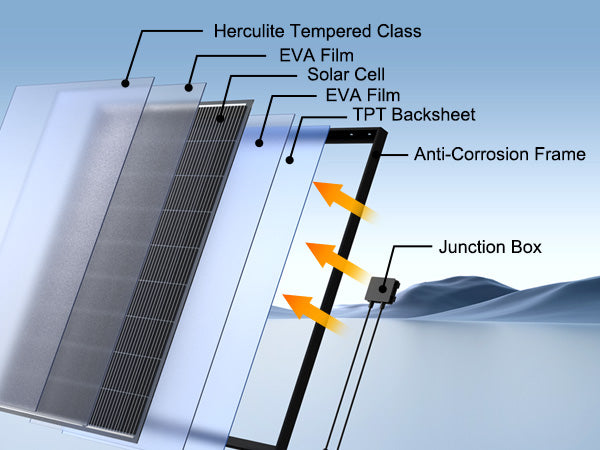

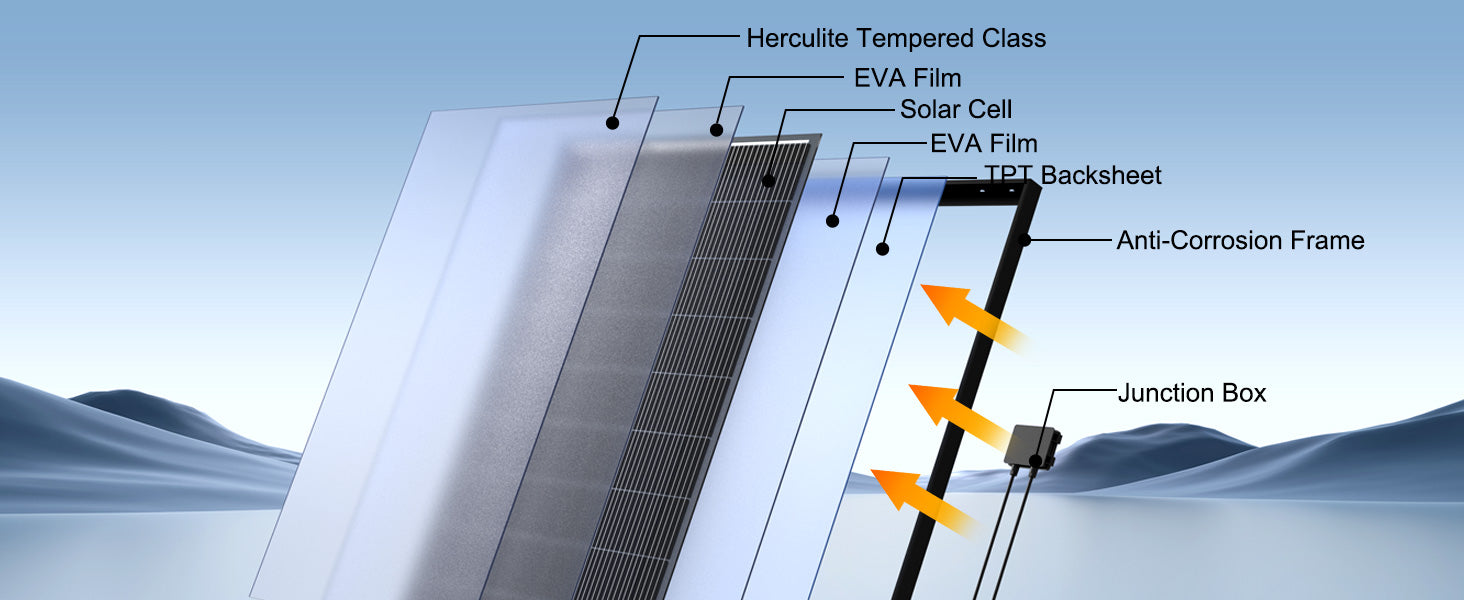

- High-transmission AR-coated tempered glass for better light capture
- Excellent low-light output in cloudy, morning, and evening conditions
- Plug-and-play solar connectors support series or parallel wiring
- Pre-drilled holes compatible with ground mounts, Z-brackets, poles, and tilt mounts
Available Power Options
| Model | Power | Vmp | Imp | Voc | Isc | Dimensions | Weight |
|---|---|---|---|---|---|---|---|
| HY100-12MT | 100W | 17.15V | 5.83A | 19.37V | 6.12A | 885 × 579 × 35 mm | 5.66 kg / 12.48 lbs |
| HY125-12MT | 125W | 19.8V | 6.3A | 23.76V | 6.9A | 1073 × 584 × 35 mm | 6.9 kg / 15.2 lbs |
| HY150-12MT | 150W | 23.4V | 6.7A | 27.3V | 7.04A | 1262 × 579.6 × 35 mm | 7.67 kg / 16.91 lbs |

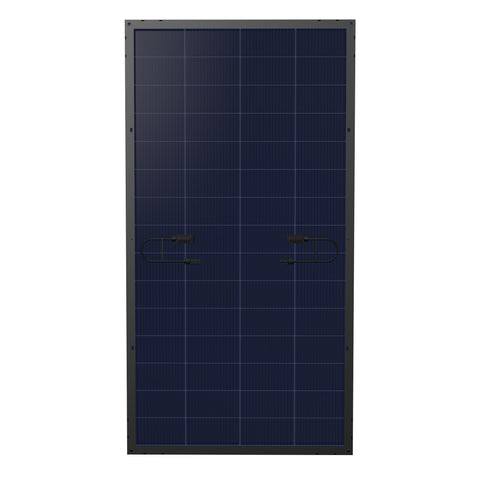

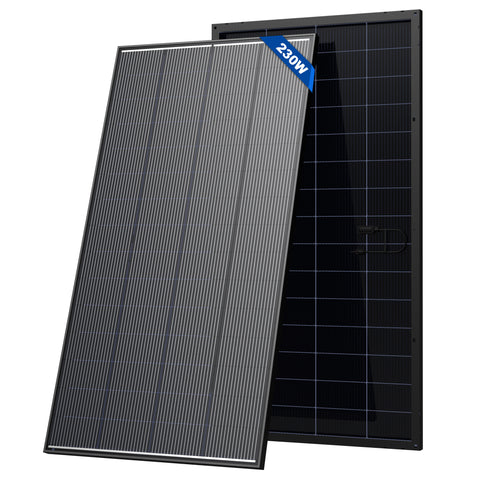

| HY230-12MT | 230W | 18.0V | 13.41A | 21.0V | 14.08A | 1460 × 764 × 35 mm | 11.78 kg / 25.97 lbs |
Why Choose BBN Series?
☀️
Higher Efficiency
N-Type TOPCon cell technology improves light trapping and current collection.
🌥️
Low-Light Performance
Maintains strong output on cloudy days and during mornings and evenings.
🛠️
Easy Installation
Pre-drilled mounting holes support Z-brackets, poles, ground and tilt systems.
🛡️

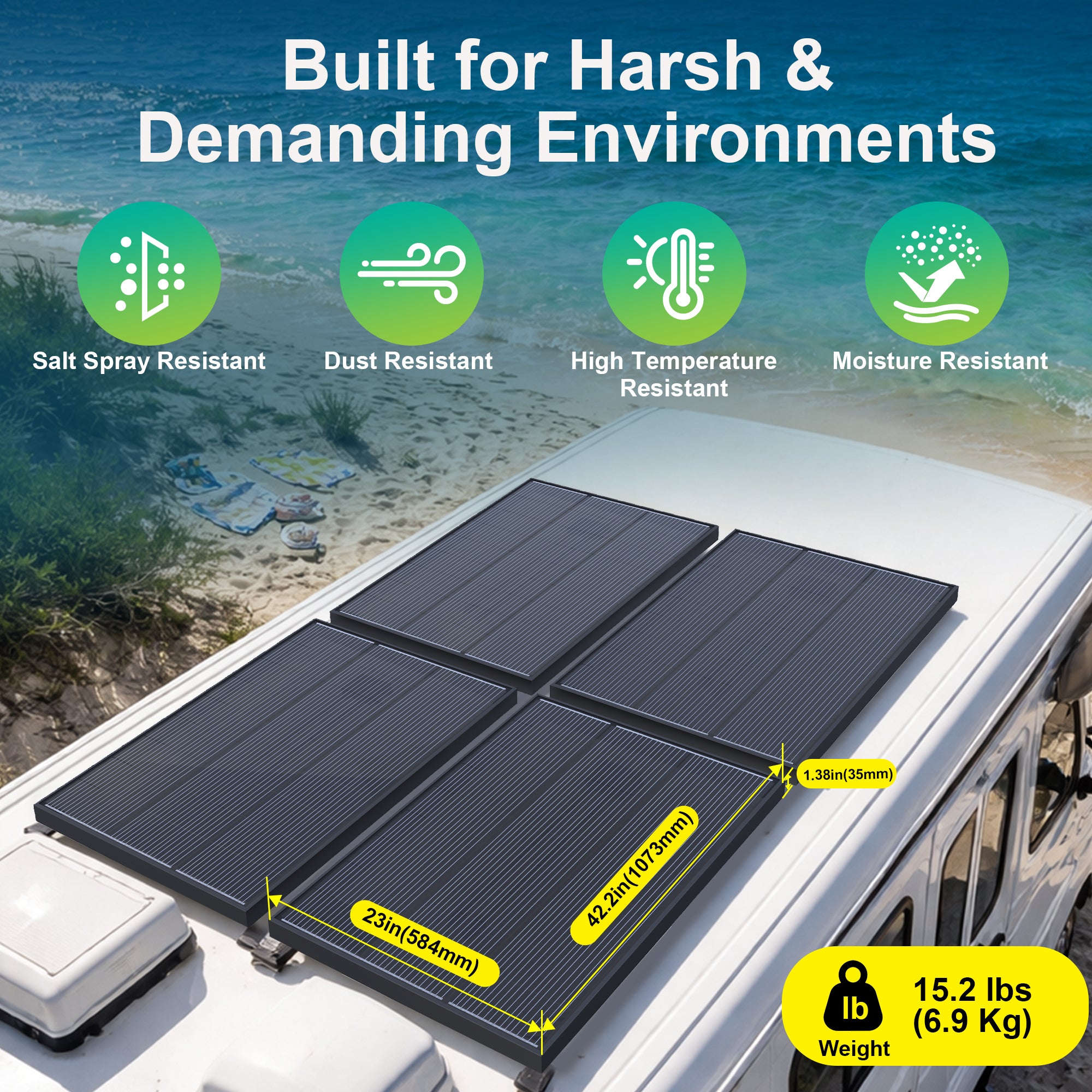

Built for Outdoors
Tempered glass, anodized aluminum frame, and IP67-rated junction box for harsh environments.

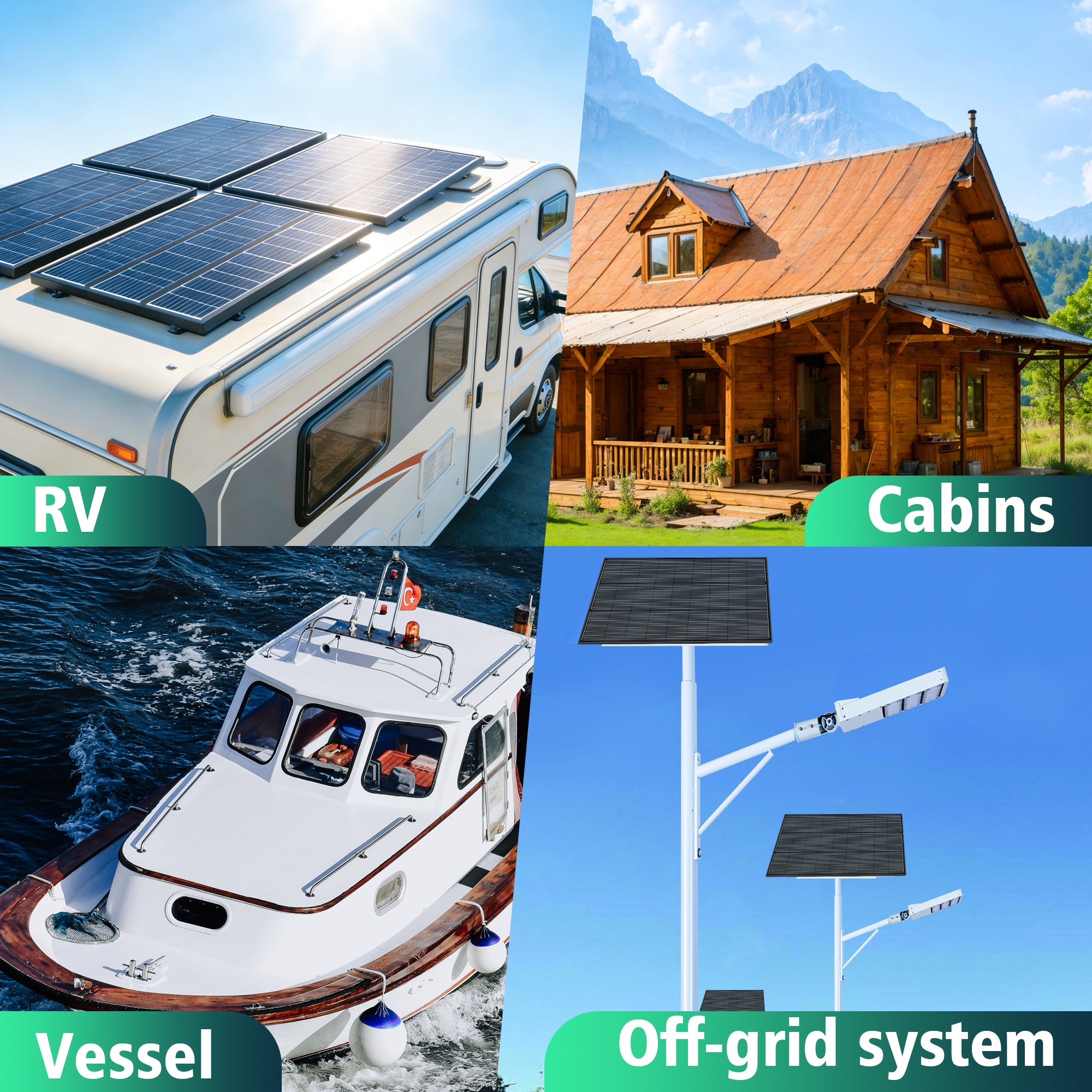

Applications
- RV and camper solar systems
- Cabins and off-grid battery charging
- Marine and boat power systems
- Truck and mobile work power systems
- Remote monitoring and outdoor equipment
Common Series Specifications
| Cell Type | N-Type TOPCon Monocrystalline |
| Module Efficiency | 25.4% |
| Front Glass | Tempered Glass 3.2 mm (0.13 in) |
| Frame | Anodized Aluminum Alloy (Black) |
| Connectors | MC4 Connectors |

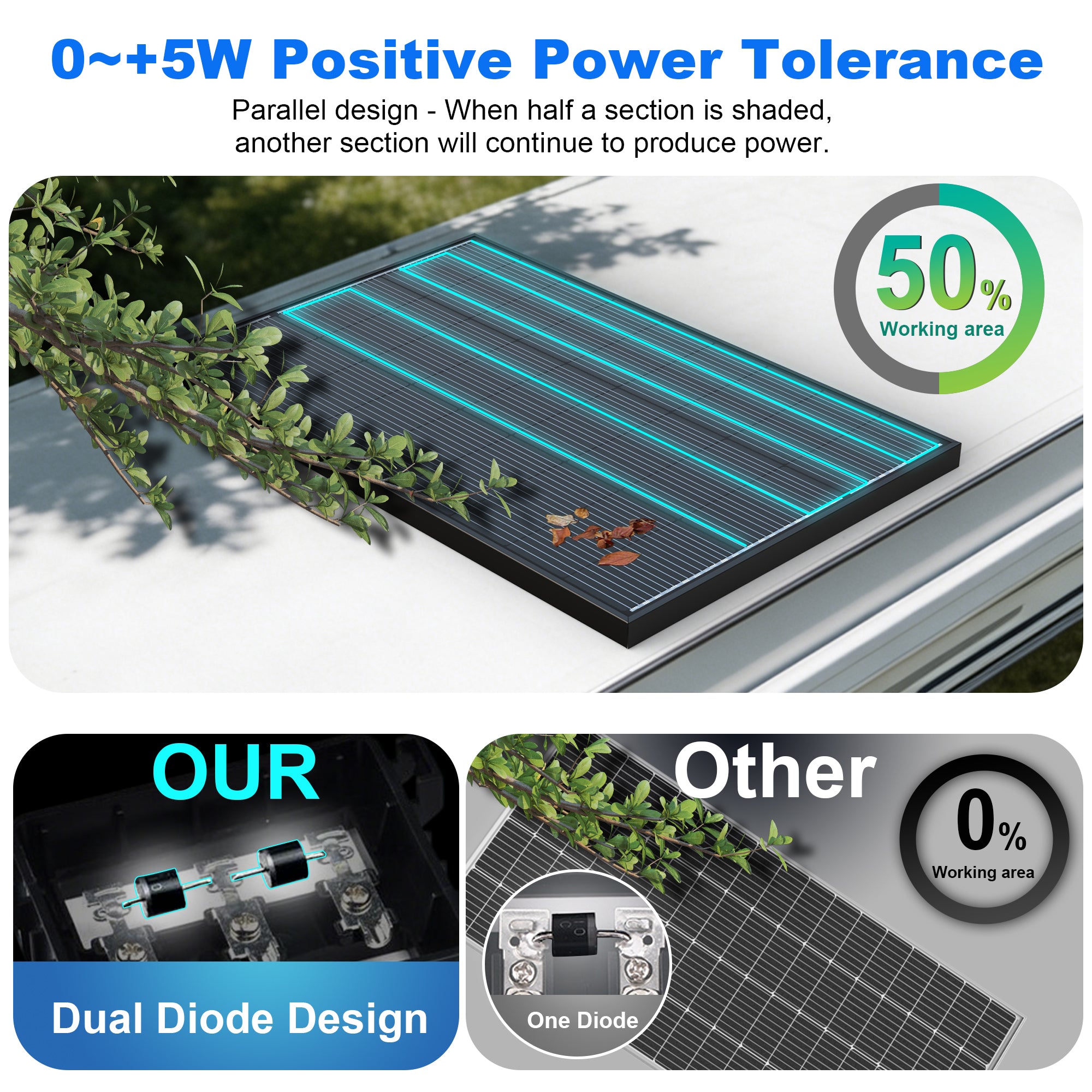

| Junction Box | IP67, 2 Diodes |
| Output Cable | 12 AWG, 900 mm (35.4 in) |
| Max System Voltage | 1000 VDC |
| Max Series Fuse Rating | 30A |
| Operating Temperature | -40°C to 85°C (-40°F to 185°F) |
| NOCT | 45 ± 2°C |
| Pmax Temp Coefficient | -0.32%/°C |
| Voc Temp Coefficient | -0.26%/°C |
| Isc Temp Coefficient | -0.046%/°C |
Downloads
Add your official PDF files to Shopify Files, then replace the links below with your final URLs.
FAQ
Can I use these panels for RV and off-grid systems?
Yes. The BBN series is positioned for RVs, cabins, boats, trucks, and off-grid power systems.
Can these solar panels be wired in series or in parallel?
Yes. The datasheets state plug-and-play solar connectors support both series and parallel configurations.
Are mounting holes included?
Yes. Pre-drilled holes support ground mounts, Z-brackets, poles, and tilt systems.
What warranty is included?
The BBN series includes a 5-year product warranty and a 25-year output guarantee.
