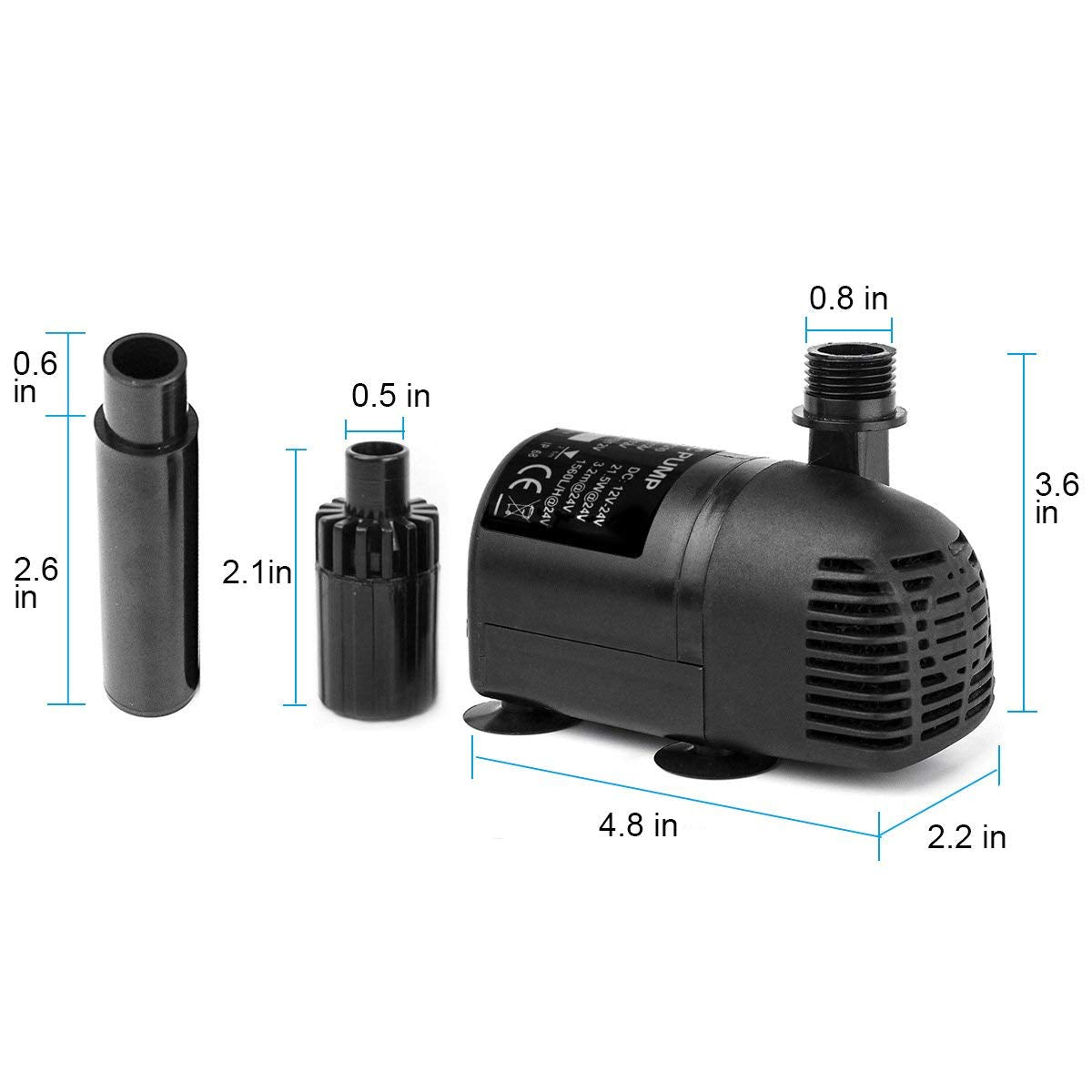

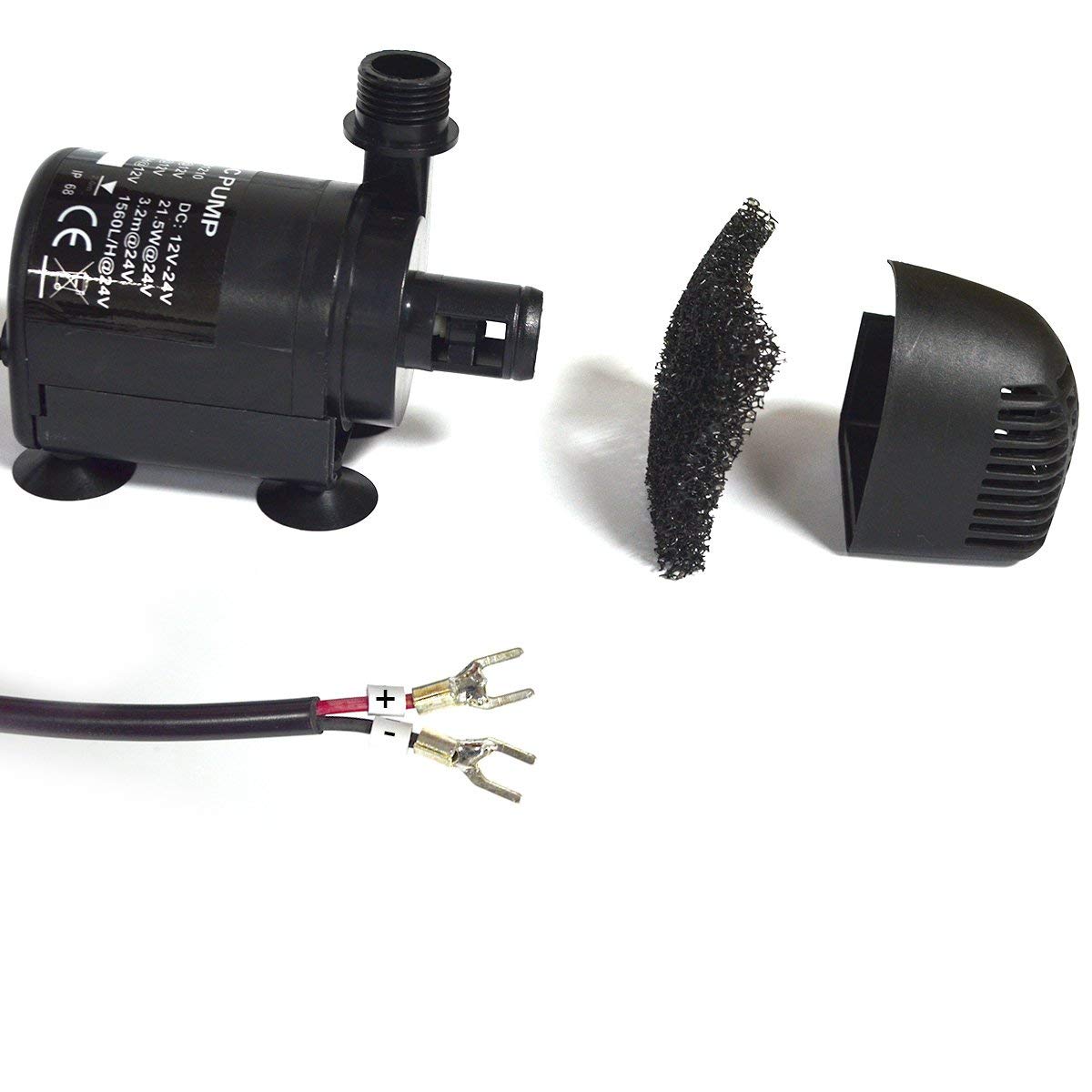

PUMP Product Info:
Brushless pump power consumption: DC 12-24V
Maximum water height: 3.3ft@12V / 10.5ft@24V
MaximumFlow: 240G/H@12V; 410G/H@24V
Start: The water pump will not work without sunlight, It will restart within 3 seconds once the sunlight re-appear.
Useful life period: ≥20000Hours
Restart: If sunshine is off , it can restart within 3 seconds when sunshine is back
Color: Black Package weight: 1.8 lb
Package dimensions: 170*105*110mm

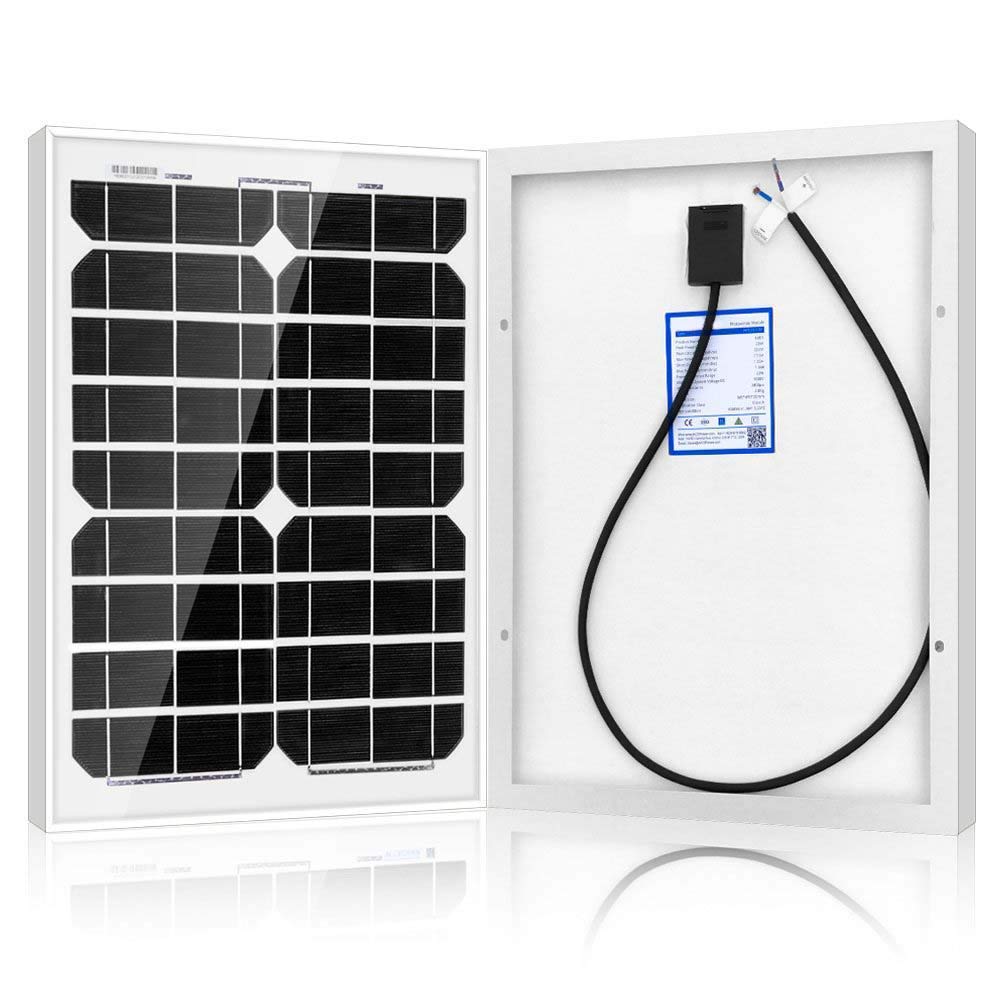

20W Momo Solar Panel Product Specification
Peak Power (Pmax):20W
Short Circuit current (Isc): 1.23A
Open circuit voltage (Voc): 22V
Optimum operating current (Imp): 1.14A
Optimum power voltage (Vmp): 17.5V
Weight:4.25 lb

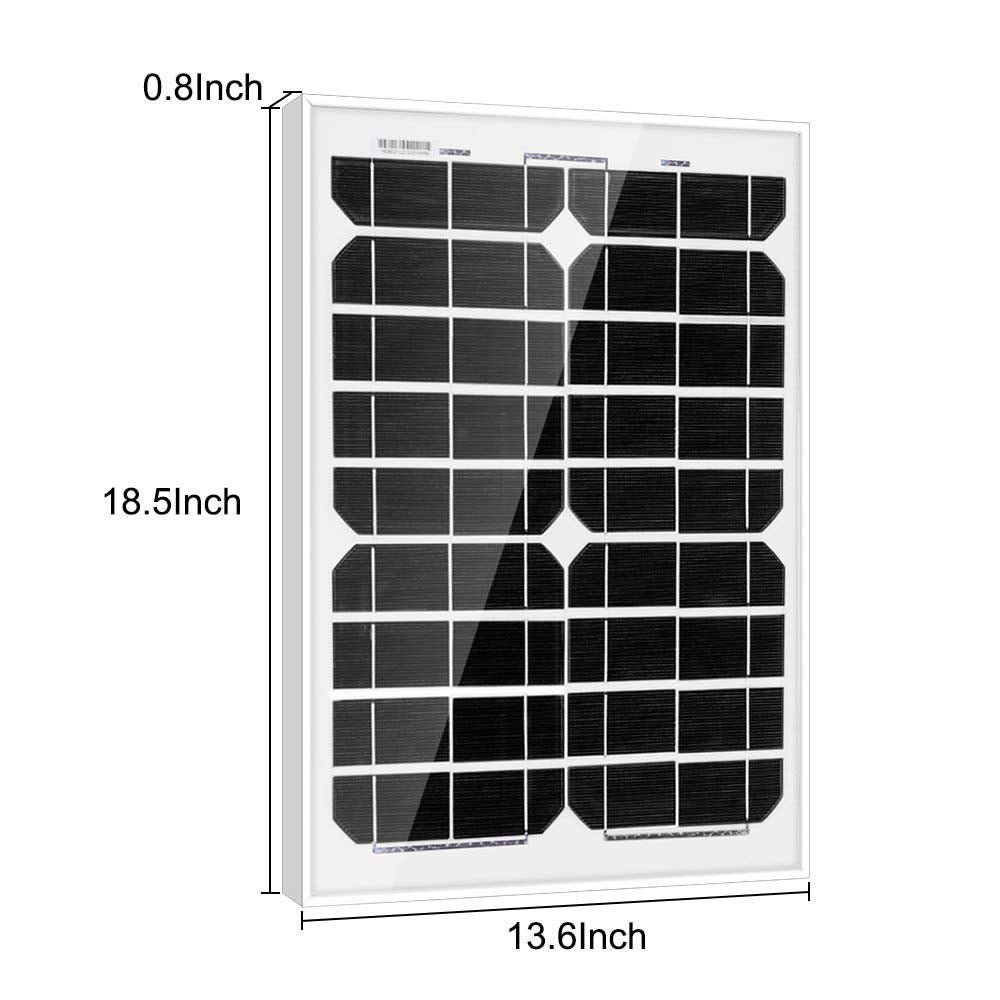

Dimension:18.5*14.2*0.8 Inch
All technical data at STC
Test condition:1000W/m², AM1.5,25℃
Operation Suggestions:
1.Put the pump totally in the water with its nozzle over the water.
2. Put solar panel under enough sunshine and be better to face directly to sun
3. Make sure no leaf or any other stuff shade any part of solar panel, or it won’t work.
4. Pull out the plug(the head part) first, and make the pump work for seconds to let the air go out of the pump.
Tips of Using the Pump:
● Don't make the pump work without water for a long time, or its lifespan will be shortened.
● Please put the pump into water and keep the solar panel out of water; otherwise it will get damaged and couldn't work.
● Clean the pump regularly especially the water outlet and spray caps to prevent it from getting stuck.
● Change water frequently to keep water clean to avoid any dirt to impede the pump.
● Always keep the surface of solar panel clean to well absorb sunlight.
Package Inludes:
* 1pc Water Pump
* 1pc 20W Mono solar panel
* Some attachments
* User Manual
The solar panel and pump have withstood various weather conditions, including rain and intense sun, without any degradation in performance.
The 410GPH flow rate is more than sufficient for my fountain. It creates a beautiful water display that's become the centerpiece of my garden.
Considering its performance and build quality, this solar water pump kit offers excellent value for the price.
The manual provided clear and concise instructions, making the installation process hassle-free.
The entire kit is lightweight and portable, allowing me to reposition it easily as needed.
